6" recessed panel, 5CCT, 2hrs Fire rated (5006-FR-CC-WH) by Dals

Image may not reflect selected features
No Image
Available

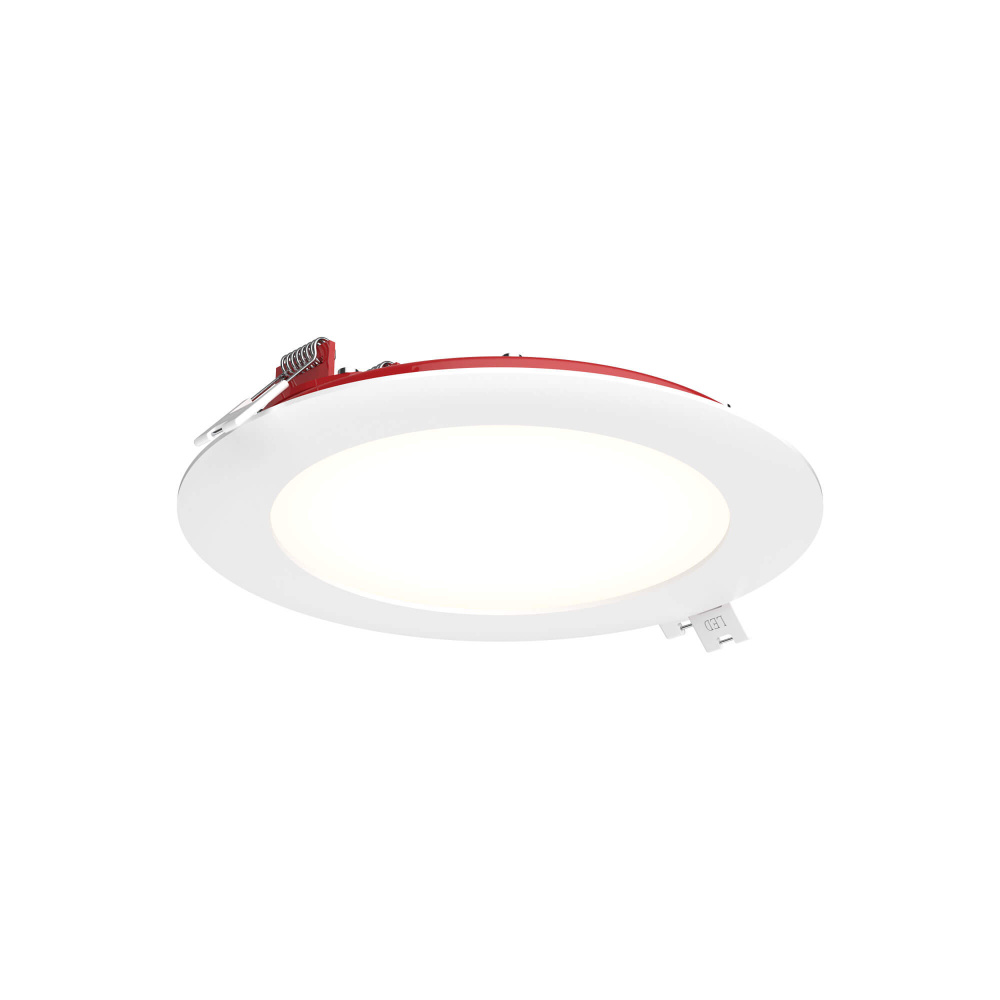

6" recessed panel, 5CCT, 2hrs Fire rated
additional image
BASE PRICE:
$
59
00
/ / 1
($59.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
5006-FR-CC-WH
Dimensions:
Height: 1.13"
Width: 7.13"
Length: 7.13"
Availability:
    Description
    Details
    Downloads
    Our new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.
    Vendor Item #:
    5006-FR-CC-WH
    Category:
    Recessed Ltg.
    Subcategory:
    Other Recessed Ltg.
    Finish:
    White
    Option:
    Title 24 , Outdoor , Wet Rated , Prop 65
    Category:
    Recessed
    Subcategory:
    Slim Panel
    Finish:
    White
    Family:
    Excel
    Voltage:
    120 V
    Number of Bulbs:
    1 Bulbs
    Bulb Dimmable:
    Yes
    Bulb Hours:
    50000
    Kelvin:
    2700/3000/3500/4000/5000
    Material:
    Aluminum
    Ship Carton Height:
    2.5
    Ship Carton Length:
    8.5
    Ship Carton Width:
    7.25
    Ship Weight:
    1.2
    Warranty:
    5 Years Limited
    Weight:
    1.1
    Air-Tight (ASTM E283--4):
    Yes
    Beam Angle:
    110°
    Bulb CRI:
    80
    Country of Origin:
    China
    Delivered Lumens:
    1230
    Dimmer Type:
    Triac/ELV
    Energy Star:
    No
    IC Certification:
    Yes
    Indoor:
    Yes
    IP Rating:
    IP44
    JA8:
    Yes
    Lens Material:
    Plastic
    Location Rating:
    Wet Rated
    Max Wattage:
    14 W
    Maximum Working Temperature:
    40°C
    Minimum Working Temperature:
    -20°C
    Outdoor:
    Yes
    Prop 65:
    Yes
    Safety Rating:
    ETL Approved
    Shipping Master Height:
    15.25
    Shipping Master Length:
    17.5
    Shipping Master Quantity:
    20
    Shipping Master Weight:
    24
    Shipping Master Width:
    14
    Title 24:
    Yes
    Wiring:
    Hardwired
    Manufactured By:
    Dals


    Additional Information:
    • 2-hour fire-rated without additional housing or hardware (in accordance with UL 263, ASTM E119, and CAN ULC S101)
    • Every fixture includes a junction box with an integrated driver
    • IC certification (suitable for direct contact with insulation)
    • Over 35,000 hours of service life
    • Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
